100 Gallons of Fresh Water

1200 Watts of Solar

3000 Watt Inverter

800 AH Battery Bank

ACELA Monterra GL 4x4


100 Gallons of Fresh Water

1200 Watts of Solar

3000 Watt Inverter

800 AH Battery Bank

Introducing the 2024 ACELA Monterra GL 4x4.

Built for the boldest adventures, this rugged powerhouse is designed to conquer any terrain with ease. Featuring a new build on a robust Acela Monterra GL 4x4 chassis, this vehicle is powered by a Cat 7.2L engine paired with an Allison 7-speed automatic transmission, ensuring reliability and top-notch performance.

This expedition vehicle boasts a 15' 4-seasons habitat box mounted on a 4-point articulating subframe, providing maximum comfort and durability for your off-road excursions. With 1000+ watts of rooftop solar and 100+ gallons of fresh water, you'll have all the resources you need for extended journeys.

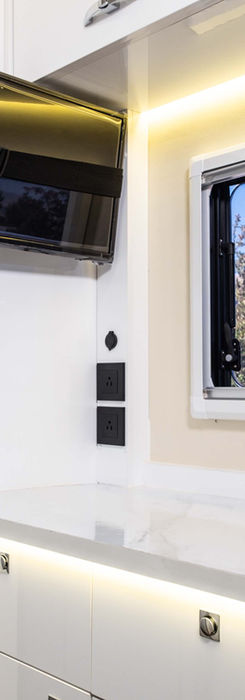

The interior is fully equipped with a dometic A/C, truma diesel heat/hot water, an electric bed over a large leather dinette, a well-appointed kitchen with an induction cooktop, microwave, and stainless sink, plus opening windows with shades and screens, a roof hatch, and fans for ventilation. The dry bath features a cassette toilet and a separate large shower room for your convenience.

On the exterior, you'll find an outdoor shower, electric awning, slide-out kitchen, and a Traeger grill for outdoor cooking, along with numerous storage areas and gear boxes. A Sherpa 16,500 lb recovery winch ensures you're ready for any challenge the wilderness throws your way.

And with the capacity to carry an additional 5000 pounds, cargo capacity is no issue at all, making sure you can bring everything you need for your adventure.

Dimensions - Length: 26’3” Width: 84” Height: 12’ 11"

Vehicle Weight: 20,600

GVWR: 25,999 lb

The Essentials and More.

Cat 7.2L Diesel engine with Allison 7-speed automatic transmission

Robust Acela Monterra GL 4x4 chassis

4-point articulating subframe for enhanced stability

16,500 lb Sherpa recovery winch

High-speed gearing allowing up to 74 mph (tested up to 80 mph)

Michelin XZY 425/65R M+S 22.5 tires

17,000 lb Meritor Mx17-140 front drive axle

MH-MVG-750 2-speed transfer case with air shift

Front and rear air springs for improved ride quality

Off-road LED lighting for nighttime expeditions

Central tire inflation system for optimal traction

Off-Road Features:

2.25” Thick composite 4 seasons habitat box

High-quality acrylic windows with blinds/screens

Skylight and exhaust fan

Dometic 15000 BTU A/C

Truma diesel heat and hot water system

Electric lift queen bed over dinette

Leather seating

Lacquered white wood cabinetry

Flat Screen TV

Bluetooth sound system

Kitchen with fridge/freezer and induction cooktop


Surround Camera System

Full dry bath with separate shower

Cassette Toilet

Numerous charge ports for electronic devices

Slide-out kitchen and Traeger grill for outdoor cooking

Spacious storage areas and multiple gear storage boxes

LED and accent lighting throughout

Roof hatch and fans for ventilation

Electric awning for shade and protection from elements

Living Space:

Starlink (prewire/install): $1,000

Sand ladders: $500

Pass thru to cab: $ 20,000
4 Kw Generator: $ 4000
Additional off road lighting: $1000 - $3,000

Available Options:

Victron Smart Energy system

1200 watts of rooftop solar power

800 amp-hour lithium battery bank

30 amp Victron TR Orion charge controller

3000W inverter

100+ gallons of fresh water storage

Gray tank with a secret dump valve

Power and Utilities:
